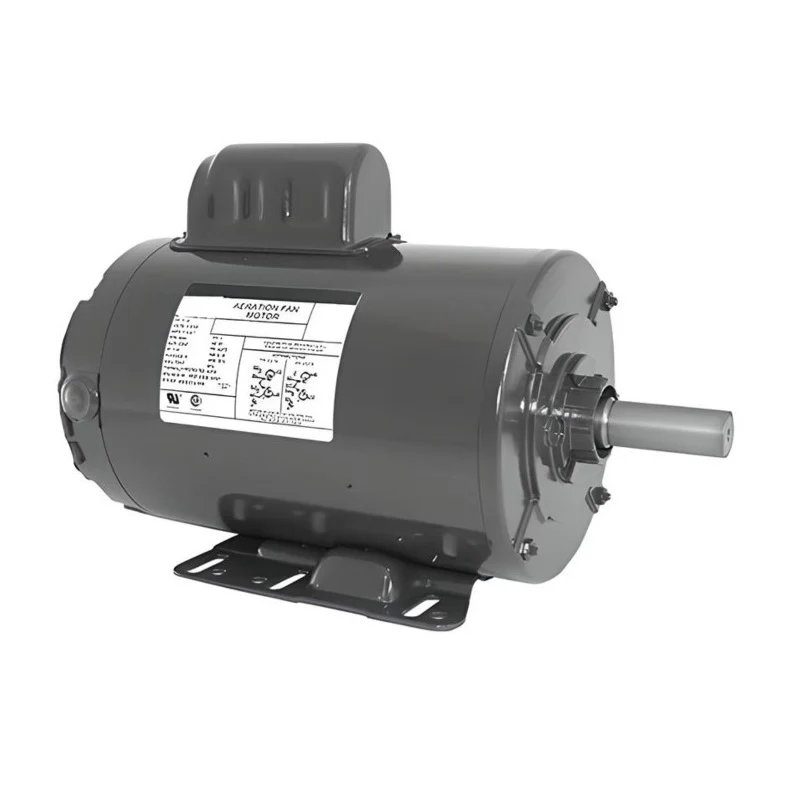

US Motors FD32CA1P14 | Farm Duty Motor 1.5HP, 3600RPM, 115/230V, Frame 143TZ, TEAO

• Dimension Print Available Here

Product Details : US Motors FD32CA1P14 | Farm Duty Motor 1.5HP, 3600RPM, 115/230V, Frame 143TZ, TEAO

• Part No: FD32CA1P14
• Product Type: Farm Duty Motor
• Categories: Crop Dryer
• Brand: US Motors - Nidec
• Frame: 143TZ
• Enclosure: TEAO
• Horsepower (HP): 1.5
• Poles: 2
• RPM: 3600
• Voltage: 115/230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 17.4/8.7
• Features:
  • Totally Enclosed Air Over
  • Class B Insulation on 56 Frame
  • Class F Insulation on 140 Frame
  • Keyed Shaft Drilled on Center 1 Deep & Tapped 1/4 UNC
  • 56Z Frame Motors have 5/8Dia. X 2-1/4 Long Shaft
  • F1 Assembly Position
