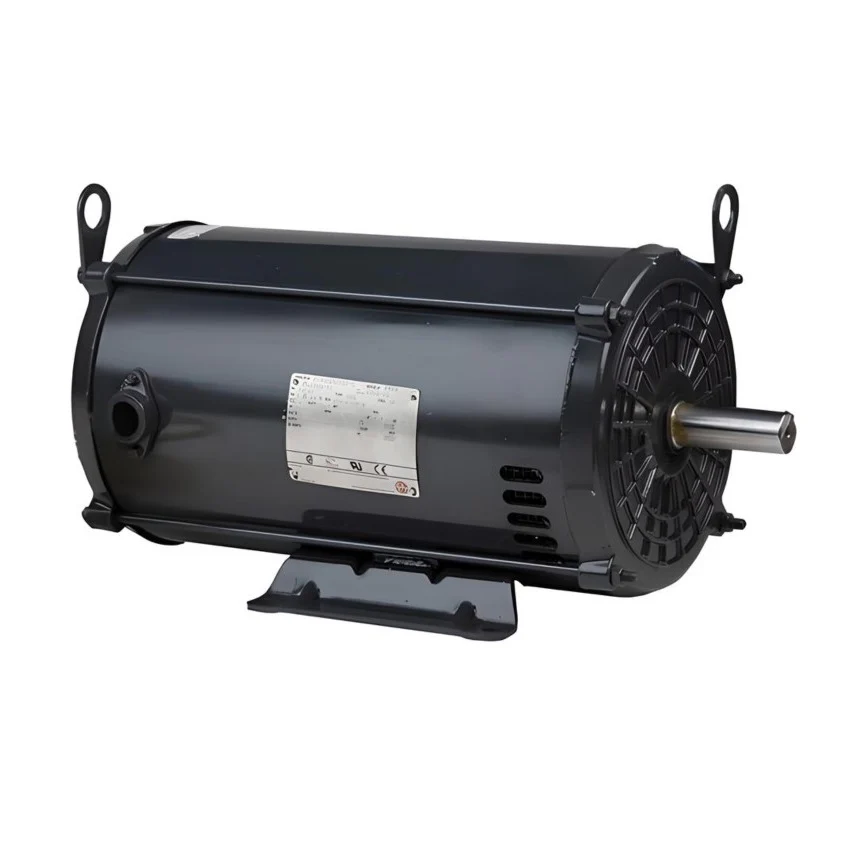

US Motors FD5CM1K18Z | Farm Duty Motor 5HP, 3600RPM, 230V, Frame 184TZ, ODP

• Dimension Print Available Here

Product Details : US Motors FD5CM1K18Z | Farm Duty Motor 5HP, 3600RPM, 230V, Frame 184TZ, ODP

• Part No: FD5CM1K18Z
• Product Type: Farm Duty Motor
• Categories: Crop Dryer
• Brand: US Motors - Nidec
• Frame: 184TZ
• Enclosure: ODP
• Horsepower (HP): 5
• Poles: 2
• RPM: 3600
• Voltage: 230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 21
• Features:
  • Open Drip proof Air-Over
  • F1 Assembly Position
  • Rodent Screens, Extra Long Leads, Class F Insulation
  • Thermostat Protected (Overheating Protection)
  • Requires Leads to be connected to Control Circuit of Motor Controller
  • Non-Standard 1-1/8 Diameter X 3-1/4 Long Keyed Shaft Is Drilled On Center
  • 1 Deep & Tapped 1/4-20 UNC

For any information about products, please contact us.

*Photos for reference purposes only.
