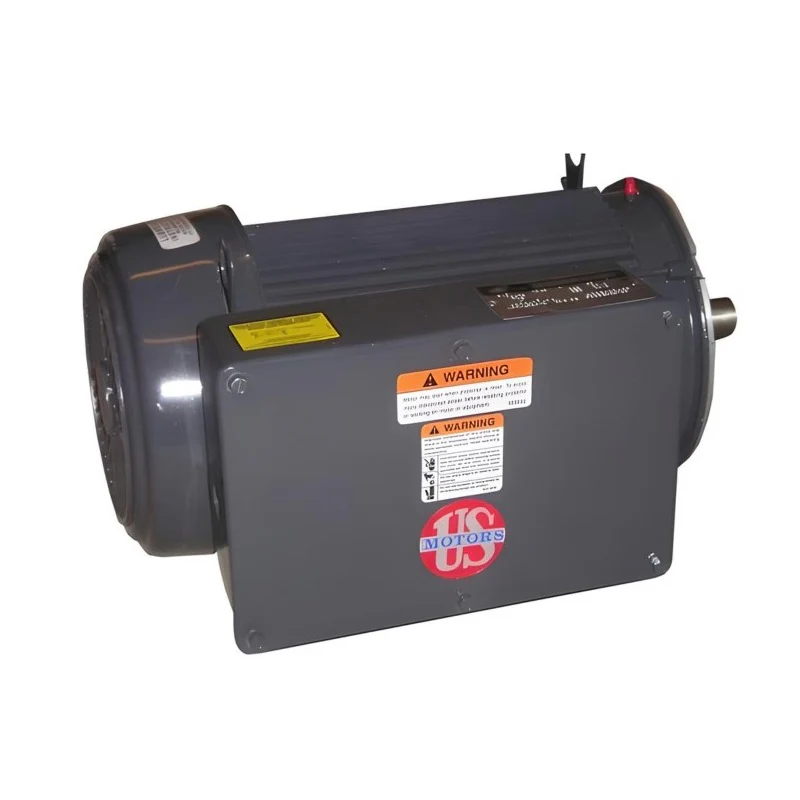

US Motors FDU5CM2K18C | Farm Duty Motor 5HP, 1800RPM, 230V, Frame 184TC, TEFC

• Dimension Print Available Here

Product Details : US Motors FDU5CM2K18C | Farm Duty Motor 5HP, 1800RPM, 230V, Frame 184TC, TEFC

• Part No: FDU5CM2K18C
• Product Type: Farm Duty Motor
• Categories: Ultra High Torque
• Brand: US Motors - Nidec
• Frame: 184TC
• Enclosure: TEFC
• Horsepower (HP): 5
• Poles: 4
• RPM: 1800
• Voltage: 230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 24
• Features:
  • Class F Insulation
  • 40°C Ambient, Continuous Duty
  • Typical Starting Torque 300% Of Full Load
  • F1 Assembly
  • Manual Reset Thermal Overload Protector
  • Extruded Aluminum Frame (180-210 Frame), Plastic Fan & Fan Cover
  • Double Shielded Bearings w/Low-Temp Grease (Regreasable Shaft End)
  • Removable Condensation Drains For Vertical Mounting
  • Fully Gasketed Steel Conduit Box
  • Die Cast Aluminum Brackets With Steel Bearing Inserts

For any information about products, please contact us.

*Photos for reference purposes only.
