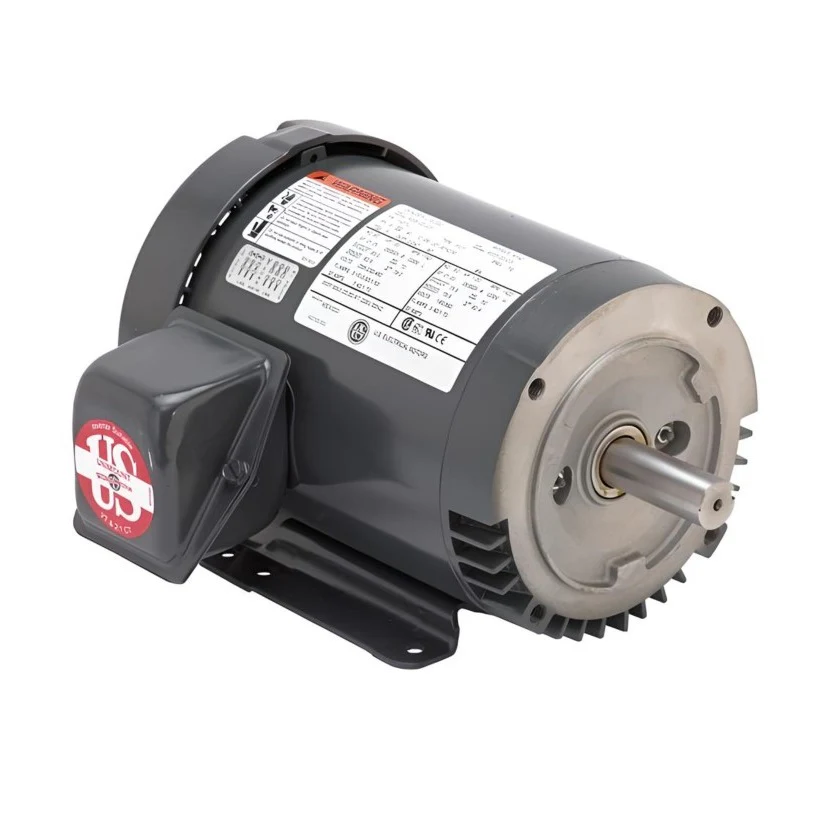

US Motors U32P2GFC | General Purpose Motor 1.5HP, 1800RPM, 575V, Frame 56C, TEFC

• Dimension Print Available Here

Product Details : US Motors U32P2GFC | General Purpose Motor 1.5HP, 1800RPM, 575V, Frame 56C, TEFC

• Part No: U32P2GFC
• Product Type: General Purpose Motor
• Categories: Steel Edge NEMA Premium
• Brand: US Motors - Nidec
• Frame: 56C
• Enclosure: TEFC
• Horsepower (HP): 1.5
• Poles: 4
• RPM: 1800
• Voltage: 575V
• Phase: 3
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 1.7
• Features:
  Applications: For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • CE Mark On Nameplate (140 Frames and Ratings with Note 03)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
  • 1.15 Service Factor

For any information about products, please contact us.

*Photos for reference purposes only.
