US Motors UJ5C1K18M | Pump - JM Motor 5HP, 3600RPM, 230V, Frame 184JM, TEFC

• Dimension Print Available Here

Product Details : US Motors UJ5C1K18M | Pump - JM Motor 5HP, 3600RPM, 230V, Frame 184JM, TEFC

• Part No: UJ5C1K18M
• Product Type: Pump - JM Motor
• Brand: US Motors - Nidec
• Frame: 184JM
• Mounting: JM Shaft / Footed
• Enclosure: TEFC
• Horsepower (HP): 5
• Poles: 2
• RPM: 3600
• Voltage: 230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 19.6
• Features:
  Applications: For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty environments.
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • Cast Iron Frame 280 & Up, Aluminum 180-250, Rolled Steel 140
  • Cast Iron End Brackets 280 & Up, Aluminum With Steel Bearing Inserts
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Regreasable Shaft End Bearing 180 Frame & Up
  • Double Shielded Bearings
  • Removable Base (180 - 250 Frame)
  • Lifting Provisions 180 Frame & Up
  • JM Shaft For Mechanical Seal / JP Shaft For Packing Seal
  • CE Mark On Nameplate
  • Conversion Kits: Canopy Kits
  • Suitable for 208V (Must be specified at time of order)

For any information about products, please contact us.

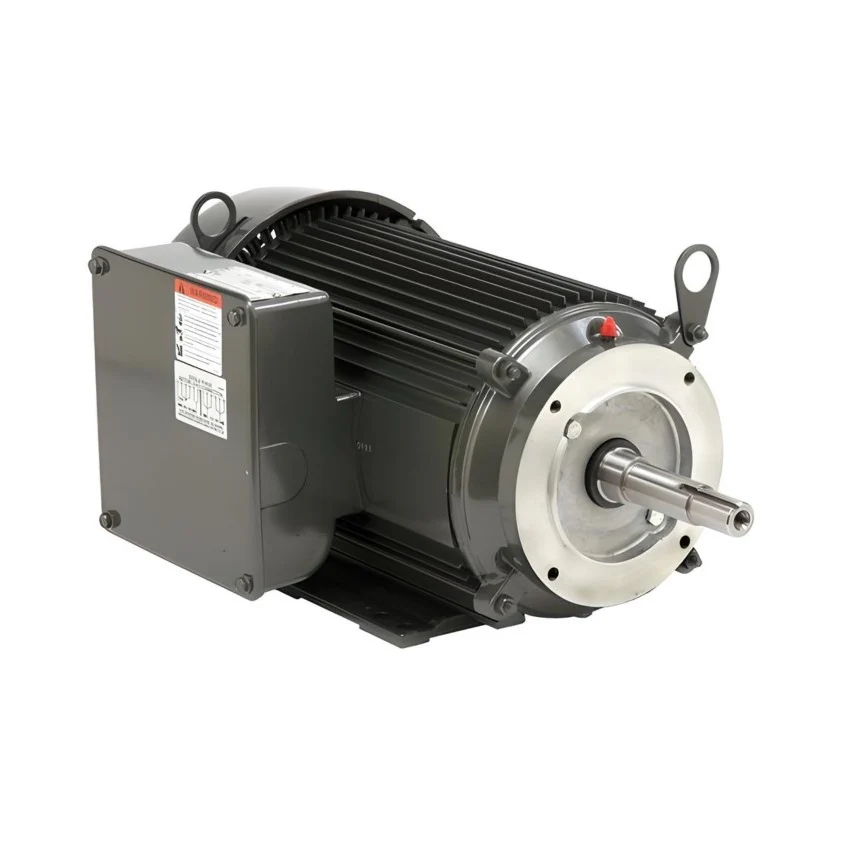

*Photos for reference purposes only.
