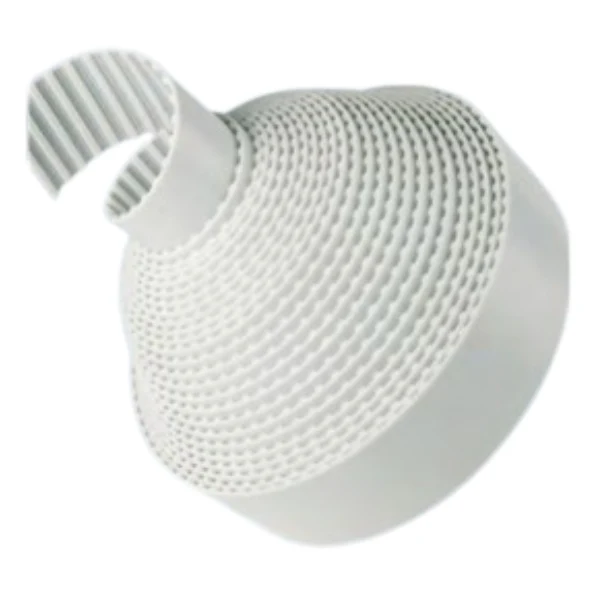

"XL" Open End Timing Belt 19.05mm Wide - Steel Cord | LXL075URS

Product Details : "XL" Open End Timing Belt 19.05mm Wide - Steel Cord | LXL075URS

• Part No: LXL075URS
• Product Type: Polyurethane Open End Timing Belt
• Length: Sold Per Foot (ft)
• Belt Profile: XL
• Belt Pitch: 5.08mm
• Belt Width: 19.05mm (0.75")
• Tooth Height: 1.27mm
• Belt Thickness: 2.3mm
• Tooth Cover: None
• Back Cover: None
• Max Traction Load (N) : 625
• Breaking Strength (N): 2500
• Elongation at MTL (mm/m) : 4
• Standard Width Tolerance: +/- 0.5mm
• Standard Length Tolerance: +/- 0.8mm
• Standard Thickness Tolerance: +/- 0.3mm
• ISO: ISO 5296-1
• Material(s): White Polyurethane Thermoplastic 92 ShA
• Material Cord: Zinked Steel (S and Z torsion)

Belts offered with AVAFC coating (60/70/85 ShA) and in custom widths. For more information and pricing about these custom products please contact us.

For any information about products, please contact us.

*Photos for reference purposes only.
