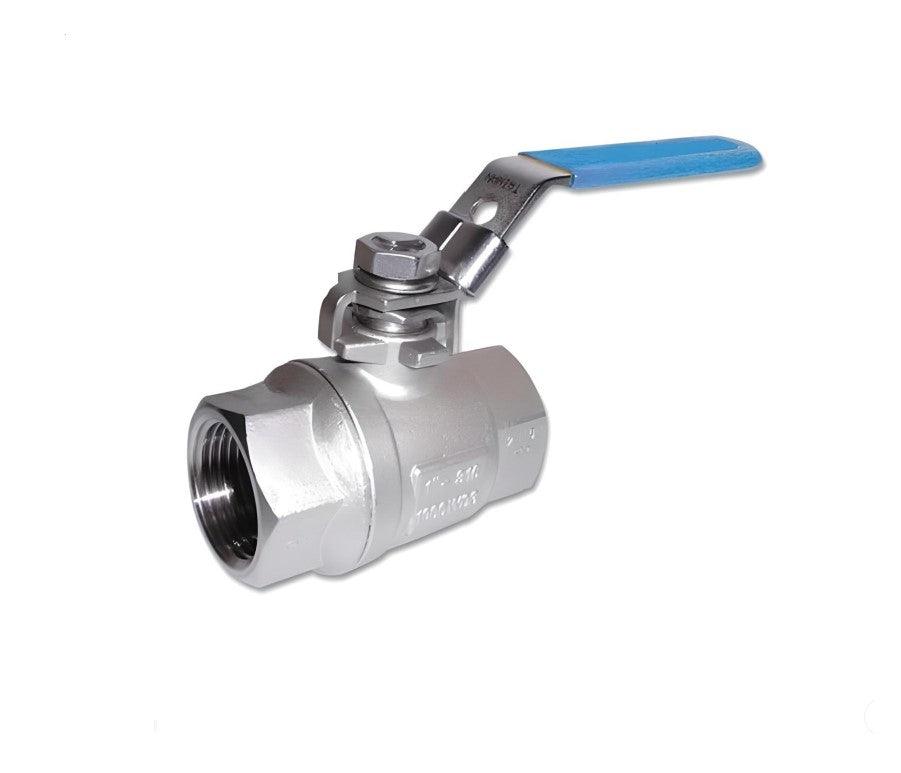

FNPT Ball Valve 2 Piece 1000 WOG Stainless Steel 316
Product Details : FNPT Ball Valve 2 Piece 1000 WOG Stainless Steel 316
-
Specifications:
• Blow-out-proof stem design
• Steam Rating: 125 PSI WSP
• Temperature Range: -50°F to 450°F
• Locking device
• Threaded type: ANSI B1.20.1 (NPT) - BODY: ASTM A351 Gr. CF8M
- CAP: ASTM A351 Gr. CF8M
- BALL: ASTM A351 Gr. CF8M
- STEM: ASTM A276 Gr. 316
- SEAT: PTFE+15% G/F
- GASKET: PTFE
- THRUST WASHER: PTFE
- PACKING: PTFE
- GLAND: SS304
- HANDLE: SS304
- SPRING WASHER: SS304
- HANDLE NUT: SS304
- HANDLE SLEEVE: Vinyl Grip
- LOCKING PLATE: SS304
For any information about products, please contact us.
*Photos for reference purposes only.
Select Size
Select WOG/Class
Select End Type
From $9.67
Original: $27.64
-65%FNPT Ball Valve 2 Piece 1000 WOG Stainless Steel 316—
$27.64
$9.67
Description
Product Details : FNPT Ball Valve 2 Piece 1000 WOG Stainless Steel 316
-
Specifications:
• Blow-out-proof stem design
• Steam Rating: 125 PSI WSP
• Temperature Range: -50°F to 450°F
• Locking device
• Threaded type: ANSI B1.20.1 (NPT) - BODY: ASTM A351 Gr. CF8M
- CAP: ASTM A351 Gr. CF8M
- BALL: ASTM A351 Gr. CF8M
- STEM: ASTM A276 Gr. 316
- SEAT: PTFE+15% G/F
- GASKET: PTFE
- THRUST WASHER: PTFE
- PACKING: PTFE
- GLAND: SS304
- HANDLE: SS304
- SPRING WASHER: SS304
- HANDLE NUT: SS304
- HANDLE SLEEVE: Vinyl Grip
- LOCKING PLATE: SS304
For any information about products, please contact us.
*Photos for reference purposes only.
